GX102G Portable Anti-Drone Suitcase

Your Mobile Solution for Comprehensive Drone Countermeasure

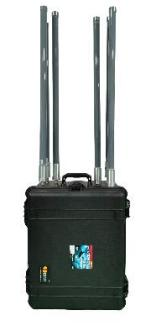

GX102G      无人机反制拉杆箱-1

Introducing the GX102G

The GX102G Anti-Drone Suitcase is a state-of-the-art, mobile unmanned aerial vehicle (UAV) defense system designed to effectively neutralize unauthorized or "black flying" drones. This robust, self-contained unit offers critical capabilities including drone interception, drone expulsion, and even sophisticated drone inducement techniques to manage airborne threats.

Utilizing advanced super-high frequency sweeping technology, the GX102G generates multiple wideband signals specifically targeting the common frequency bands used by mainstream drones for remote control, video transmission (FPV), and satellite navigation (GPS/GNSS). This targeted frequency suppression effectively forces unmanned aerial vehicles to lose control, initiating outcomes such as forced return-to-home, emergency landing, or unpredictable blind flight, thereby mitigating potential risks.

Key Advantages & Selling Points

  • • Ultimate Portability: Encased in a durable, wheeled suitcase form factor (GX102G Suitcase), allowing for rapid deployment and relocation in various environments.

  • • Comprehensive Coverage: Jams multiple critical frequency bands (see specifications), effectively disrupting control, video, and navigation signals of a wide range of drones.

  • • Multi-Mode Countermeasures: Offers versatile responses including forcing return-to-home (RTH), triggering forced landings, or causing unpredictable flight patterns (blind flight).

  • • Extended Effective Range: Capable of disrupting drones at distances up to 4000m, providing a significant defense perimeter. (Note: Range varies based on conditions).

  • • Flexible Power Options: Operates on a built-in 24V battery for standalone use or connects to an external power source for extended operation.

  • • All-Weather Capability: Designed to function reliably in a wide temperature range from -20℃ to 55℃.

Technical Specifications

ParameterDetail
Operating Frequencies840-930MHz, 1160-1280MHz, 1550-1630MHz, 2380-2500MHz, 5150-5300MHz, 5725-5850MHz
Jamming Distance1000-4000m (Varies based on environment and drone model)
Equipment Weight50KG (Main Unit) + 30KG (Battery Box)
Product Dimensions802x520x316mm
Outer Case Dimensions804x564x365mm
Power SupplyBuilt-in 24V Battery or External Power
Battery Endurance40-80 minutes
Working Temperature-20℃ to 55℃

Application Scenarios

The GX102G Portable Anti-Drone Suitcase is ideally suited for protecting sensitive areas and events from the threat of unauthorized drone flights. Its mobility and power make it invaluable in situations requiring rapid response and flexible deployment.

  • Critical Infrastructure: Power plants, utilities, communication centers.

  • Government & VIP Protection: Protecting official buildings, residences, and personnel.

  • Large Public Events: Concerts, sports events, rallies, ensuring public safety.

  • Airports & Airspace Management: Preventing incursions into restricted airspace.

  • Prisons & Correctional Facilities: Countering contraband delivery via drones.

  • Border Security: Monitoring and interdicting suspicious UAV activity.

  • Temporary Security Perimeters: Establishing quick defense zones around sensitive sites.

Frequently Asked Questions

Q: What types of drones can the GX102G effectively counter?

A: The GX102G is designed to counter most mainstream civilian and commercial drones by targeting the widely used frequencies for control, video, and navigation (GPS/GNSS).

Q: How portable is the GX102G Anti-Drone Suitcase?

A: As the name suggests, it's designed in a suitcase form factor with wheels, making it highly portable and allowing for rapid transport and deployment by personnel.

Q: What happens to a drone when it is affected by the GX102G?

A: When its control, video, or navigation signals are effectively jammed, the drone will typically initiate its pre-programmed safety protocol, which is often return-to-home (RTH) or a forced landing. In some cases, it may enter an uncontrolled blind flight state.

Secure your airspace with the advanced GX102G Portable Anti-Drone Suitcase.
