Advanced Drone Countermeasure Technology

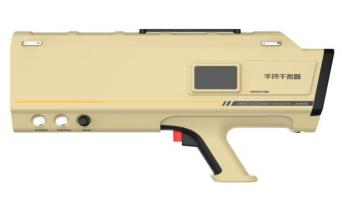

Introducing the GX102F-B Drone Countermeasure Gun, a state-of-the-art, software-defined handheld jammer designed for effective UAV defense. This powerful device simultaneously emits multiple interference signals, providing robust countermeasures against a wide range of conventional and non-standard "black flying" drones. It offers essential capabilities to trigger drone return-to-home, forced landing, or expulsion effects, ensuring airspace security.

Key Features & Benefits

• Software-Defined Frequency Agility: Customizable frequency bands between 300MHz and 2500MHz via software, adapting to evolving drone threats.

• Multi-Band Simultaneous Jamming: Targets multiple typical drone control and navigation frequencies concurrently, including 400MHz, 600MHz, 800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, and 5.8GHz.

• Rapid Effectiveness: Interference takes effect in as little as 3 seconds, providing a quick response to detected UAVs.

• Lightweight and Highly Mobile: Weighing ≤3.5kg and with compact dimensions (≤500mm×300mm×100mm), it offers excellent maneuverability for mobile deployment.

• Extended Operation: Provides up to 50 minutes of operation in full-band mode, over 8 hours in typical conditions, and more than 12 hours of standby time per battery.

• Wide Operating Temperature: Functions reliably in extreme conditions, from -40℃ to 70℃.

Technical Specifications

Applications & Use Cases

The exceptional portability and performance of the GX102F-B make it ideal for a variety of low-altitude security and anti-drone defense needs. Its primary applications include:

• Protecting Important Meetings and conferences from aerial surveillance.

• Ensuring security at Large Events and public gatherings.

• Providing Fixed Location Patrol support for sensitive sites.

• Enhancing Critical Infrastructure Protection.

• Supporting Law Enforcement and Security Personnel in counter-UAV operations.

Frequently Asked Questions

What does "software-defined" mean for the GX102F-B?

Being software-defined means the GX102F-B's interference frequencies are not fixed hardware but can be customized and updated via software. This allows the device to adapt to new drone communication methods and frequency hopping techniques, offering future-proof counter-UAV capabilities.

What effects can the GX102F-B have on an intruding drone?

The GX102F-B Drone Countermeasure Gun is designed to disrupt a drone's control and navigation signals. This typically results in one of three outcomes: the drone initiating an automatic return-to-home sequence, performing a forced landing at its current location, or being expelled from the protected area by losing its command link.

What is the effective range of the GX102F-B?

Under standard conditions with a 0.1W radiation source on the drone, the GX102F-B has an interference range of over 1.5 kilometers. Actual range may vary depending on environmental factors, line of sight, and the specific drone model being countered.

Secure your airspace with the advanced GX102F-B Software-Defined Handheld Drone Countermeasure Gun.
