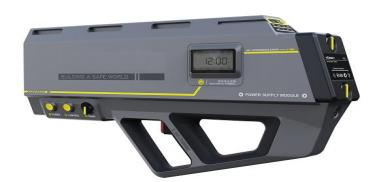

GX102E-B: The Ultimate Full-Band Drone Detection and Countermeasure System
Secure Your Airspace with Advanced, Portable Anti-Drone Technology
Product Overview: Integrated Airspace Security
The GX102E-B is a cutting-edge, integrated drone detection and countermeasure gun designed for comprehensive low-altitude airspace defense. This all-in-one device seamlessly combines drone detection, forensic data capture, drone countermeasure (jamming), visual display and control, power supply, and network connectivity into a single, highly effective unit.
Engineered for rapid deployment and field use, the GX102E-B boasts a remarkably compact size and lightweight design, ensuring superior mobility. It is an ideal solution for protecting sensitive areas during important meetings, large events, or for enhancing security during fixed-site daily patrols.
Beyond standalone operation, the GX102E-B can be deployed distributively alongside other anti-drone equipment, facilitating intelligent information fusion, enabling unified platform management, and optimizing resource utilization for a truly integrated security posture.
Key Features and Advantages
All-in-One Integration: Combines detection, forensics, countermeasure, control, and networking in a single, portable unit.
Exceptional Mobility: Lightweight (<= 3.5kg) and compact (<= 500mm x 300mm x 100mm) for easy handling and rapid deployment.
Wide-Spectrum Detection: Monitors critical drone frequencies including 800MHz-1.4GHz, 2.4GHz, and 5.8GHz.
Powerful Multi-Band Jamming: Disrupts threats across 400MHz to 5.8GHz with extensive predefined bands and software-defined custom frequencies (300MHz~2500MHz).
Rapid Response: Countermeasures take effect in ≤ 3 seconds.
Effective Strike Range: Neutralizes threats with a range of > 1.5km.
Flexible Deployment: Operates standalone or integrates into larger drone defense systems for intelligent fusion and unified management.
Extended Battery Life: Provides ample operating time for various scenarios (> 50 mins full power, > 8 hours typical, > 12 hours standby per battery).
Robust Operation: Designed to perform reliably in extreme temperatures (-40℃ to 70℃).
Technical Specifications
| Specification | Detail |
|---|
| Detection Frequencies | 800MHz-1.4GHz, 2.4GHz, 5.8GHz |
| Detection Range | ≥2km (Open Environment), 0.5km-1km (Suburban Environment) |
| Jamming Frequencies | 400MHz, 600MHz, 800MHz, 900MHz, 1.1GHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz |
| Custom Frequencies | 300MHz~2500MHz (Software Defined) |
| Response Time | ≤3s |
| Effective Jamming Range | >1.5km (against typical targets) |
| Dimensions | ≤ 500mm × 300mm × 100mm |
| Weight | ≤ 3.5kg |
| Battery Life | ≥ 50 minutes (Full Power), ≥ 8 hours (Typical Use), ≥ 12 hours (Standby, per battery) |
| Operating Temperature | -40℃ to 70℃ |
Application Scenarios and Use Cases
The versatility and mobility of the GX102E-B anti-drone gun make it suitable for a wide range of airspace security applications:
VIP and Event Security: Providing immediate drone protection during important meetings, conferences, concerts, sports events, and public gatherings.
Critical Infrastructure Protection: Safeguarding power plants, data centers, government buildings, and other sensitive sites from aerial surveillance or threats.
Fixed Site and Patrol Security: Augmenting existing security measures at key locations or providing mobile defense during patrols.
Law Enforcement and Emergency Services: Countering unauthorized drones interfering with operations or posing a risk.
Military and Defense: Providing portable, effective low-altitude defense against enemy reconnaissance or attack drones.
Its ability to integrate with broader security platforms allows for scalable and adaptable drone defense solutions tailored to specific threat environments.
Frequently Asked Questions
Q: What types of drones can the GX102E-B detect and counter?
A: The GX102E-B is designed to detect and jam drones operating on common communication and control frequencies, including 2.4GHz, 5.8GHz, and various frequencies within the 800MHz-1.4GHz range. Its custom frequency capability (300MHz-2500MHz) allows it to be configured against a wide variety of commercial and many custom-built drones.
Q: How long does the battery last during operation?
A: The battery life of the GX102E-B varies depending on usage. It provides over 50 minutes of continuous operation when transmitting on all frequency bands simultaneously. In typical operational scenarios, the battery lasts for over 8 hours, and in standby mode, a single battery can last for over 12 hours.
Q: Is the GX102E-B difficult to operate in the field?
A: The GX102E-B is designed with field use in mind. It features an integrated display and control system for intuitive operation. Its lightweight (<= 3.5kg) and compact design make it highly mobile and easy for personnel to deploy and use effectively in various environments.
Need to protect your airspace?
Contact us today to learn more about the GX102E-B Full-Band Drone Detection and Countermeasure Gun and how it can enhance your security capabilities.
