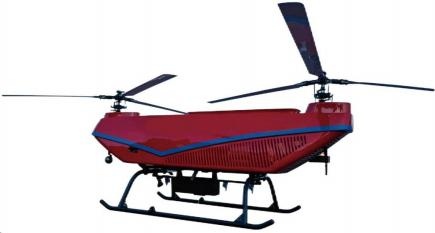

GX101K Tandem Rotor UAV: Heavy-Lift Capability & Adaptability
Introducing the GX101K Tandem Rotor Unmanned Aerial Vehicle (UAV), a state-of-the-art solution engineered for challenging missions requiring substantial payload capacity and robust performance. Utilizing an advanced tandem rotor configuration, the GX101K stands out with its superior wind resistance and exceptional adaptability to varying payload types and positions.
Unlike traditional designs that require precise center of gravity (CG) balancing, the GX101K's design features a large longitudinal CG range and a spacious fuselage, significantly simplifying pre-flight preparations. This critical advantage saves valuable time in time-sensitive operations such as emergency rescue and material delivery, dramatically boosting overall operational efficiency.
Key Advantages & Features
Enhanced Wind Resistance: The tandem rotor structure provides inherent stability, allowing the GX101K to operate reliably in challenging weather conditions, rated for wind levels ≥ 7.
Exceptional Payload Flexibility: A large longitudinal CG range and generous internal space mean less concern about payload weight distribution. This makes the GX101K highly adaptable to various cargo types and sizes without complex balancing procedures.
High Payload Capacity: Capable of carrying significant weight, the GX101K supports effective payloads of ≥ 260KG below 3000m altitude and ≥ 200KG below 4500m altitude, making it a powerful heavy-lift UAV.
Operational Efficiency: Eliminate the need for precise CG balancing, saving critical time in missions where speed is essential, such as emergency response.
Versatile Application: Designed with ample space and adaptability for various optional payloads including Electro-Optical/Infrared (EO/IR) gimbals, loudspeakers, and dispensers.
Technical Specifications
| Maximum Takeoff Weight | 650 Kg |
| Effective Payload | ≥ 260KG (< 3000m ASL)
≥ 200KG (< 4500m ASL) |
| Endurance | 2 - 4 hours |
| Maximum Flight Altitude | 6500 m ASL |
| Maximum Flight Speed | 160 Km/h |
| Engine | 141HP, Water-Cooled |
| Rotor Diameter | 400 CM |
| Wind Resistance Level | ≥ Level 7 |
| Aircraft Dimensions (L/W/H) | 400 / 130 / 190 CM |
| Positioning Accuracy | Less than 10 CM |
| Control Radius | ≥ 100 KM |
| Optional Payloads | EO/IR Gimbal, Loudspeaker, Dispenser, etc. |
Applications and Use Cases
The GX101K Tandem Rotor UAV is engineered for a wide range of demanding applications where heavy-lift capability, reliability, and operational speed are paramount. Its unique design offers significant advantages in:
Emergency Response & Disaster Relief: Rapid delivery of critical supplies, medical equipment, or communication devices to inaccessible areas. The quick setup and large payload capacity are invaluable in saving lives.
Material & Logistics Transport: Efficiently transport goods to remote locations, offshore platforms, or between facilities, bypassing difficult terrain or traffic congestion.
Infrastructure Inspection & Surveillance: Equipped with optional EO/IR gimbals, it can conduct detailed inspections of pipelines, power lines, or large structures, or provide long-range surveillance.
Public Safety & Broadcast: Deploying loudspeakers for public announcements during emergencies or utilizing dispensers for various purposes.
Frequently Asked Questions about the GX101K UAV
Q1: What is the primary advantage of the tandem rotor design on the GX101K?The tandem rotor configuration provides enhanced stability in windy conditions and allows for a much larger longitudinal range for the center of gravity. This means the GX101K is less sensitive to how the payload is placed, making operations quicker and simpler, especially in time-critical situations.
Q2: How does the GX101K's payload capacity compare to other heavy-lift drones?With a maximum takeoff weight of 650Kg and effective payload capacity reaching up to 260KG, the GX101K is among the top-tier in the heavy-lift UAV category, designed to transport substantial cargo over significant distances.
Q3: Can the GX101K operate in diverse environmental conditions?Yes, the GX101K is built for demanding environments. Its wind resistance of Level 7 or higher and ability to operate at altitudes up to 6500 meters make it suitable for a wide range of geographical and weather conditions.
